- Size: 12500*2500*1550 mm
- Place of Origin: Shandong
- Brand Name: SCD
- Model Number: SCD9400TJZ
- Weight: 6350.000 kg
According to clients' requirements, we can customize different volume and compartment.
The popular oil tanker trailer models include: 3 Axles 60,000L Fuel Tanker Trailer/ 3 Axles 45,000L Oil Tanker Semi Trailer/ 3 Axles 50CBM Tanker Trailer / 42CBM Tank Semi Trailer/ 40CBM Tank Trailer.
According to the Material, we have Carbon Steel Tanker Trailer / Stainless Steel Tank Semi Trailer / Aluminum Alloy tanker Truck Trailer .
So customers can choose what tanker they like.

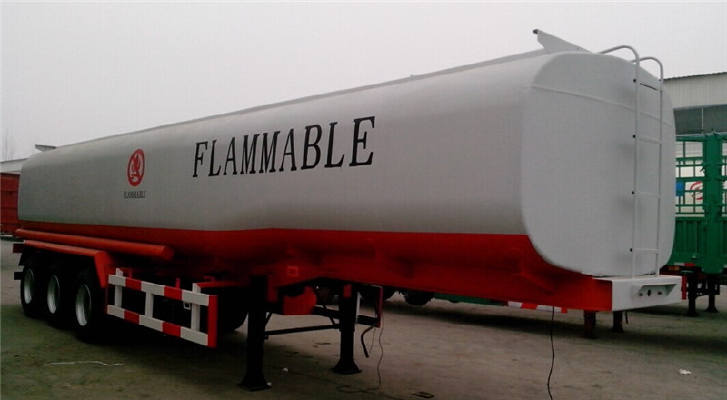

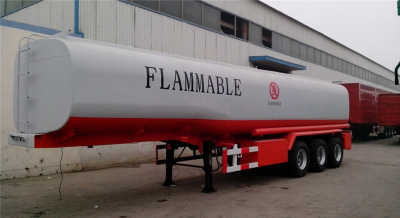

Configuration | 3 Axles 60000L Fuel Oil Tanker Carbon Steel Semi Trailer |
Tank Body Shape | Square Round/ Ellipse |
Model Name | 60000l tanker semi trailer |
Function | oil and fuel trailer |
Overall Dimension | (L*W*H) 13000*2500*4000mm |
Axle | 3 axle 13T Fuwa Brand |
Suspension system | Mechanical Suspension |
Steel Spring | 10/10/10 leaf spring suspension |
Tire | 12R22.5 12pcs Triangle brand |
Rims | 9.0, 12 pieces |
Discharge valve | 4''disc valve ,3pcs |
Discharge pipe | 4''seamless steel tube ,3pcs |
Spare Wheel Bracket | 2 |
Landing gear | Fuwa brand two-speed,manual operating |
Kingpin | 90mm or 50mm |
Tool box | one piece |
Compartment | 3, other number optional |
Braking system | RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
Electrical system | voltage:24V 2.Receptacle:7ways(7wire harness) |
Tail lamp with turn signal, brake light&reflector,side lamp etc. | |
One set 6-core standard Cable | |
Accessories | One standard tool box. fire extinguisher 2 pcs |
Painting | Sand blasting processing on rust cleaning before painting, One coat of paint Primer layer, Two coats of finish paint final coat |
Packing | Polish with wax before shipping |
